Non-Welded piping is a method of connecting pipes where no welding is required. There is no compromise in the strength, reliability and durability of the piping system. The benefit this type of method brings in is immenze, given the fact that there is no-hot work, no x-rays, no need of skilled labour, clean, safe and cost-efficient. There are many types of non-welded pipe connection systems where a notable one being from Tube-Mac Non-Welded Piping Technologies namely 37 Degree Flare Flange System, Retain Ring Flange System, and Pyplok® .
37 Degree Flare Flange
- Ideal for Sch80 and below thickness tubes
- Upto 8″ NPS (Available in Metric)
- Mainly for Hydraulic and Lubrication Systems

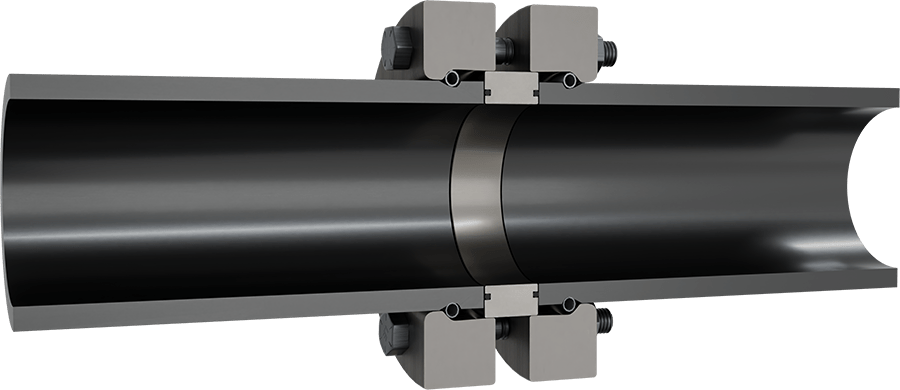

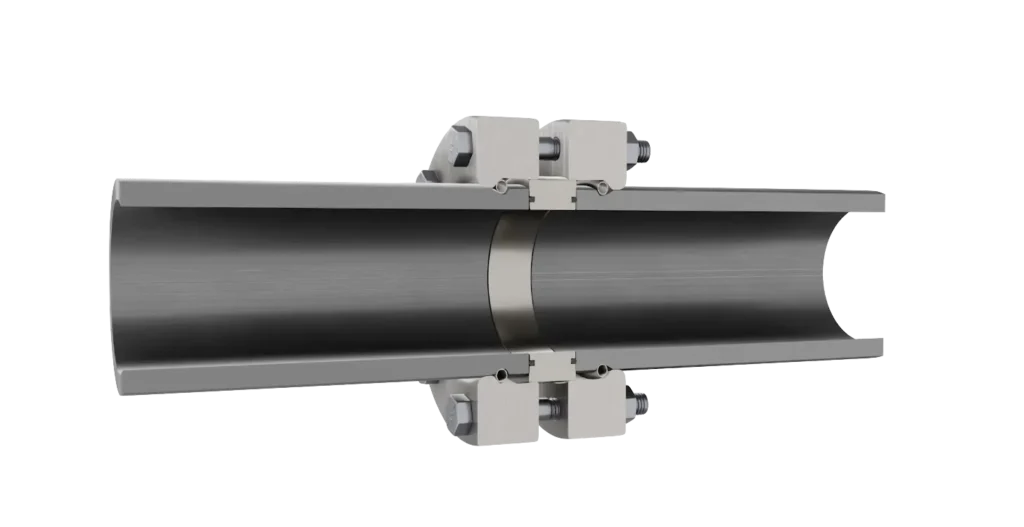

Retain Ring Flange
- Ideal for Sch160 and above pipes
- Upto 10″ NPS (Available in Metric)
- Mainly for Hydraulic and Lubrication Systems

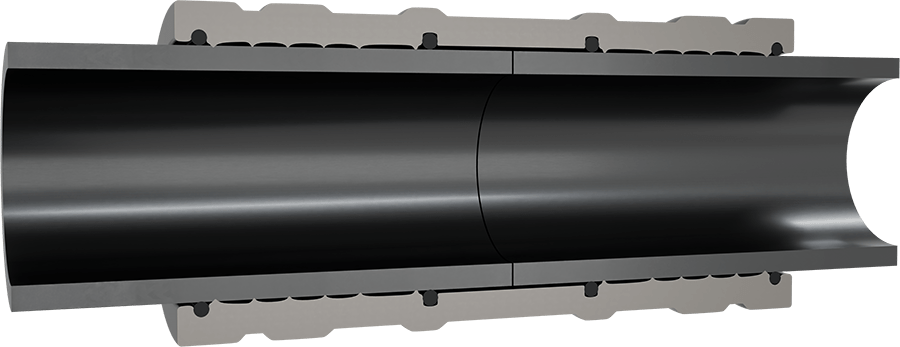

Pyplok®
- Ideal for quick installation and repair
- Upto 4″ NPS / 115 mm / 2″ OD
- For a wide variety of applications
Time Saving
Pipes are assembled simply by tightening joints, enabling much faster installation compared to welded piping.
No Hot Work
Enables safe, hazard-free pipe assembly without hot work, eliminating the need for safety permits and disruption of critical activities, while also avoiding welding-related risks such as radiation exposure.
Eco-Friendly
Is a clean and eco-friendly method, with no slag, fumes, or radiation, enabling faster flushing, cleaner joints, and reduced machinery wear due to contamination-free systems.
Reliable
Ensures long-term reliability by eliminating weld-related contamination, erosion, stress corrosion, and fatigue failures, thereby protecting sensitive hydraulic equipment and extending machinery life.
Cost Effective
Delivers long-term cost savings by eliminating skilled welding labor, inspections, and cleaning processes, enabling easy installation, reliable sealed joints, and low-cost repairs throughout the system’s service life.
Read the cost comparison between Non-Welded and Welded System
